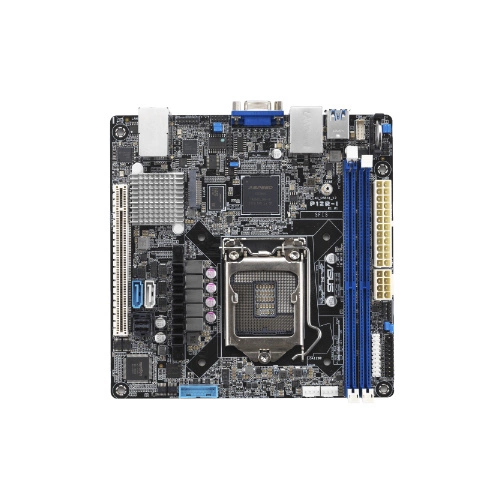

Motherboard ASUS P12R-I/ASMB10 LGA1200 mini ITX | 90SB0A70-M0UAY0
- Motherboard ASUS P12R-I/ASMB10 Intel C253 | Warranty 3 year
ManufacturerASUS
Manufacturer's designation90SB0A70-M0UAY0
Model NumberP12R-I/ASMB10
Product typeMotherboard
CPU manufacturerIntel
Servers - Ask a question about a product you are interested in
Manufacturer
ASUS
Manufacturer's designation
90SB0A70-M0UAY0
Model Number
P12R-I/ASMB10
Product type
Motherboard
CPU manufacturer
Intel
CPU Socket
LGA1200
Number of CPU slots
1
Supported CPU
Intel Xeon E Family
Intel Pentium Family
Chipset
Intel C253
Memory Expansion Slots / Banks (Server)
2
Memory slots per CPU
2
Type of memory
DDR4
Maximum supported memory
64GB ECC
RAM Memory frequency
2666MHz
2933MHz
3200MHz
Expansion slots
1x PCI-E x16
Storage options
1x M.2
6x SATA 6Gb/s
Network connectivity
1x Mgmt LAN
2x Intel I210-AT GbE
Graphics Card
ASPEED AST2600
Graphics card memory
64MB
On Board I/O
1x Serial Port Header
1x VGA
1x M.2
2x Front LAN LED
1x Chassis Intruder
2x Fan Header (4-pin)
1x USB 3.2 Gen 1 header
4x USB 3.2 Gen 1
1x 8-pin ATX 12V
1x 24-pin ATX
1x TPM
Back I/O Ports
1x Mgmt LAN
2x RJ-45
1x VGA
4x USB 3.2 Gen 1
Form factor [eng]
mini ITX
Warranty
3 year
Status
new
