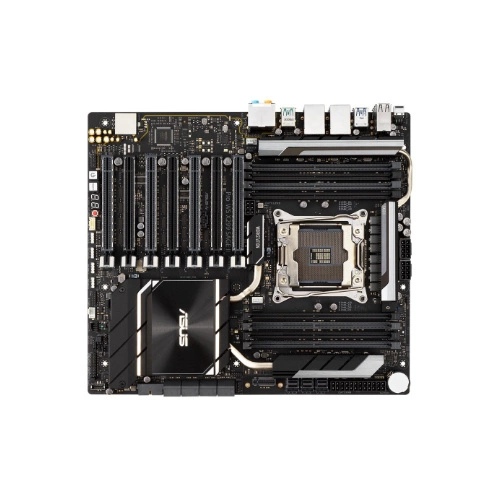

Motherboard ASUS PRO WS X299 SAGE II LGA2066 CEB | 90SW00U0-M0EAY0
- Motherboard ASUS PRO WS X299 SAGE II Intel X299 | Warranty 3 year
ManufacturerASUS
Part number90SW00U0-M0EAY0
Model NumberPRO WS X299 SAGE II
Product typeMotherboard
CPU manufacturerIntel
Servers - Ask a question about a product you are interested in
Manufacturer
ASUS
Part number
90SW00U0-M0EAY0
Model Number
PRO WS X299 SAGE II
Product type
Motherboard
CPU manufacturer
Intel
CPU Socket
LGA2066
Number of CPU slots
1
Supported CPU
Intel X-Series Family
Chipset
Intel X299
Memory Expansion Slots / Banks (Server)
8
Memory slots per CPU
8
Type of memory
DDR4
Maximum supported memory
256GB Non-ECC
RAM Memory frequency
2666MHz
2933MHz
3200MHz
Expansion slots
7x PCI-E x16 (Gen3, x16 link)
Storage options
3x U.2
2x M.2
8x SATA 6Gb/s
Raid
10
5
1
0
Network connectivity
1x Intel I225-LM
On Board I/O
1x USB 3.2 Gen 1 header
1x USB 3.2 Gen 2 header
1x 6-pin ATX 12V
1x 8-pin ATX 12V
1x 24-pin ATX
1x Thunderbolt header
1x TPM
2x RGB header
1x AAFP

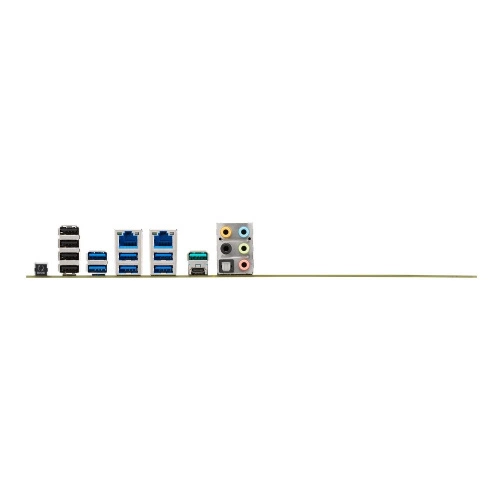

Back I/O Ports
5x Audio jacks
1x USB BIOS FlashBack
1x Optical S/PDIF
4x USB 2.0
6x USB 3.2 Gen 1
1x USB 3.2 Gen 2
2x RJ-45
Form factor [eng]
CEB
Warranty
3 year
Condition
new
